Construction Foam

Nor-Flex Expansion Joints

Protection against permanent compression set and long-term compressive creep.

norflex expansion joints construction foam banner

DURABLE AND BUILT TO RESIST DEGRADATION

In structural construction, Norseman Nor-Flex Expansion Joints are the ideal solution to protect against permanent compression set and long-term compressive creep.

Made with highly resilient, closed-cell, cross-linked Evazote® foam that stands up to road salts and petroleum products.

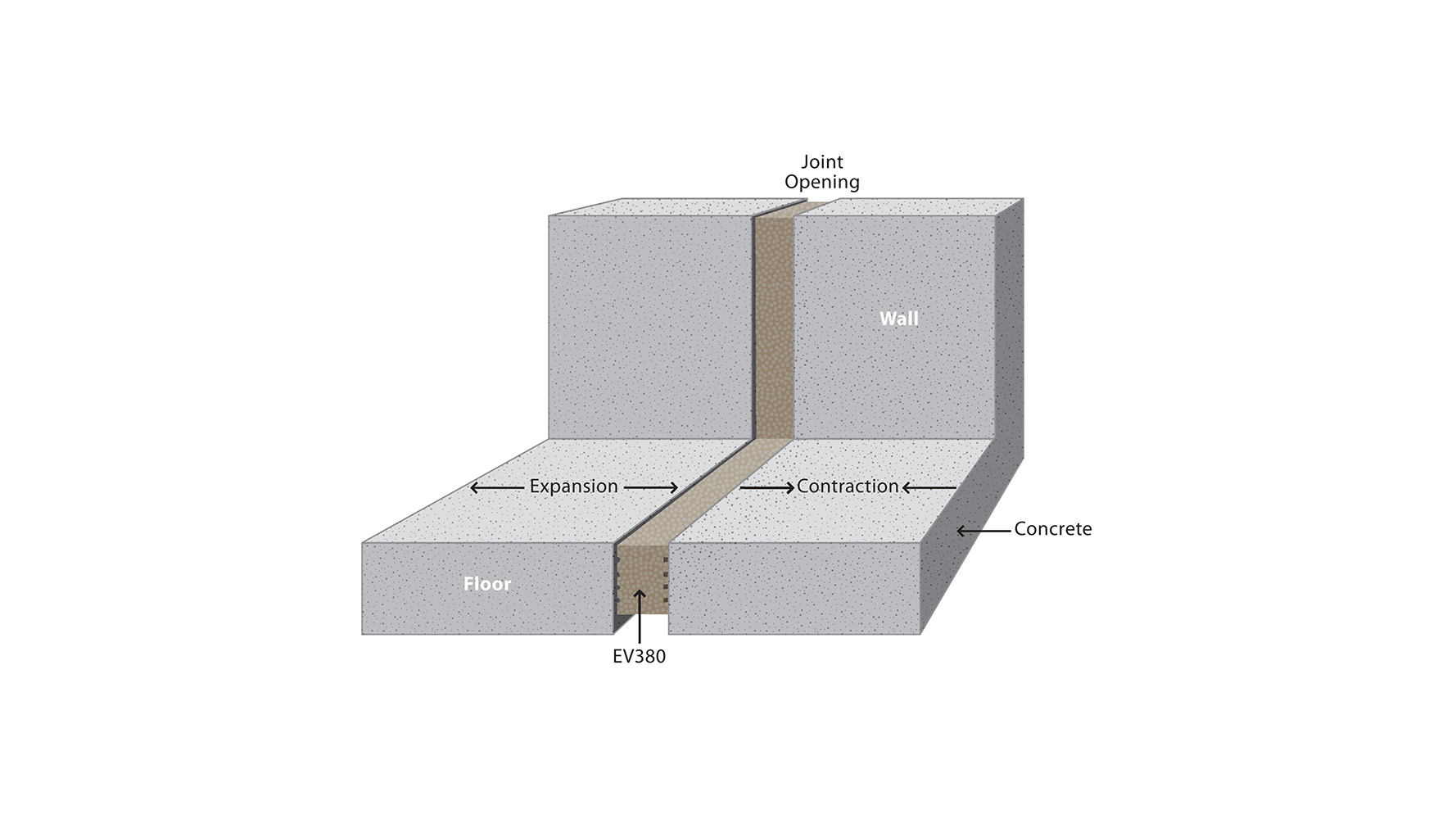

When they are bonded into place, the expansion joints permit compression up to 50% and tension up to 25% and can be used in vertical or horizontal applications.

Features

  • Fabricated with closed-cell, cross-linked Evazote® foam

  • Highly resilient, chemical resistant, non-absorbent, flexible and lightweight

  • Repels debris and is unaffected by road salts and petroleum products

  • Must be used with an appropriate epoxy or joint sealing adhesive

  • Allows compression up to 50% and tension up to 25% when bonded in place

  • Available in UV resistant grade with unique additives protecting against UX degradation

Size (Width)
1 m
Size (Length)
2 m
Size (Thickness)
12.5mm - 100mm
Color
Grey (EV50) or Bronze (EV380)

FAQ

Frequently Asked Questions

BENEFITS

GEAR POINTS

Permit compression up to 50% and tension up to 25% in both vertical and horizontal applications.

Protect

Prevents permanent compression set and compressive creep.

Withstand

Stands up to road salts and petroleum products, made with highly resilient closed-cell, cross-linked Evazote® foam.

Resist

Water, mildew, and chemical resistant. Repels debris and isn't affected by hydrocarbons. EV380 provides outstanding UV resistance.

Fit

Available in various thicknesses and two grades. Custom sizes are also available.

Perform

When bonded in place permits compression up to 50% and tension up to 25%. Can be used in horizontal and vertical applications.

SKU TABLE

NORFLEX EV50 EV 380

ITEM NO.PRODUCTCUT SIZECOLOR
413003NOR-Flex EVAZOTE® 5012.5mm T x 1m W x 2m LGrey
413004NOR-Flex EVAZOTE® 5025mm T x 1m W x 2m LGrey
413005NOR-Flex EVAZOTE® 5030mm T x 1m W x 2m LGrey
413006NOR-Flex EVAZOTE® 5040mm T x 1m W x 2m LGrey
413007NOR-Flex EVAZOTE® 5050mm T x 1m W x 2m LGrey
413008NOR-Flex EVAZOTE® 5060mm T x 1m W x 2m LGrey
413009NOR-Flex EVAZOTE® 5075mm T x 1m W x 2m LGrey
413010NOR-Flex EVAZOTE® 5090mm T x 1m W x 2m LGrey
413011NOR-Flex EVAZOTE® 50100mm T x 1m W x 2m LGrey
