PREVENT WELDING CRACKS AND WARPING

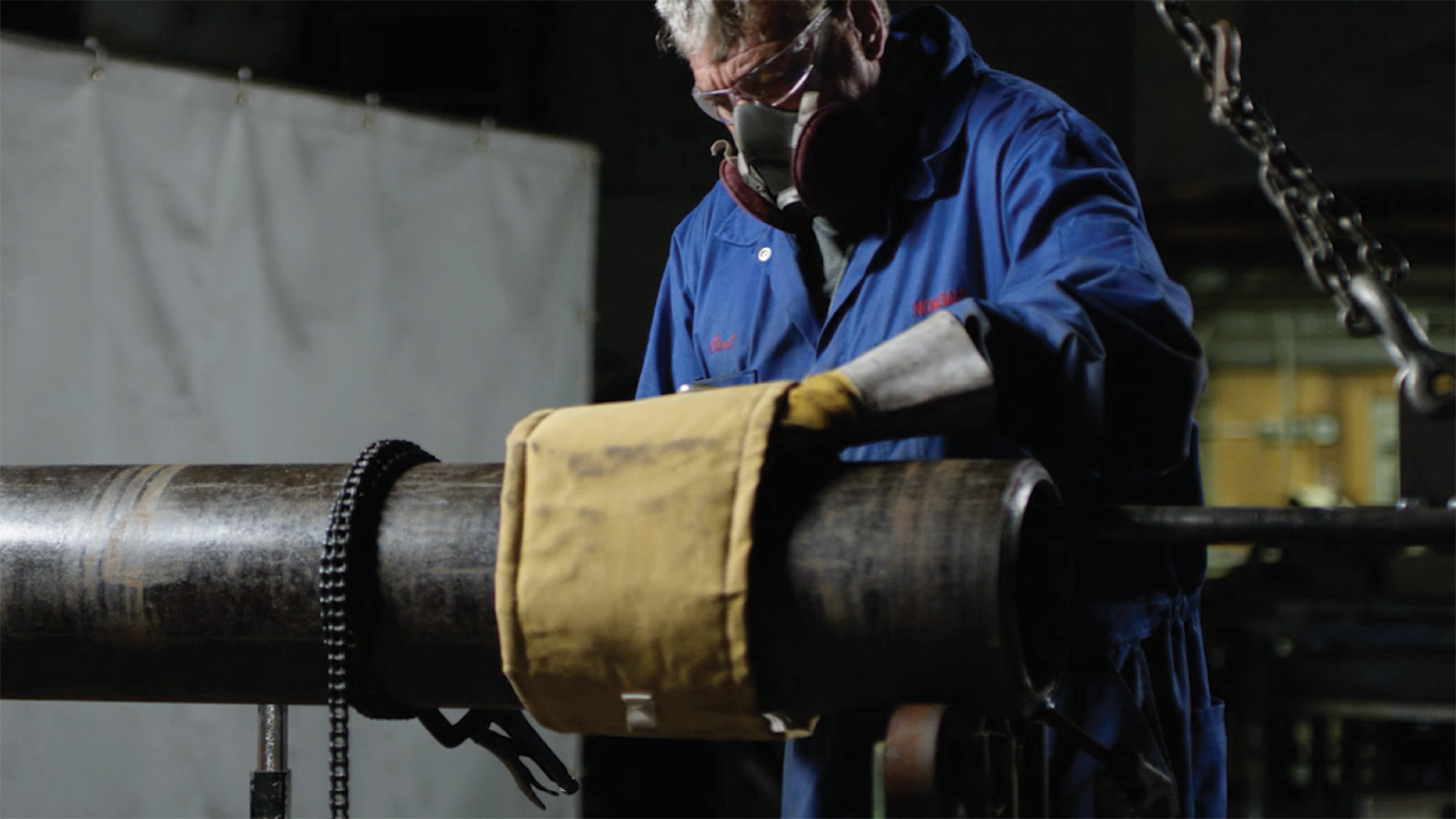

Norseman’s Pipeline Cooling Blankets minimize cracks while welding steel pipes by gradually lowering the temperature of welded metal pipes. They also act as a protective barrier to keep your crew from burning themselves.

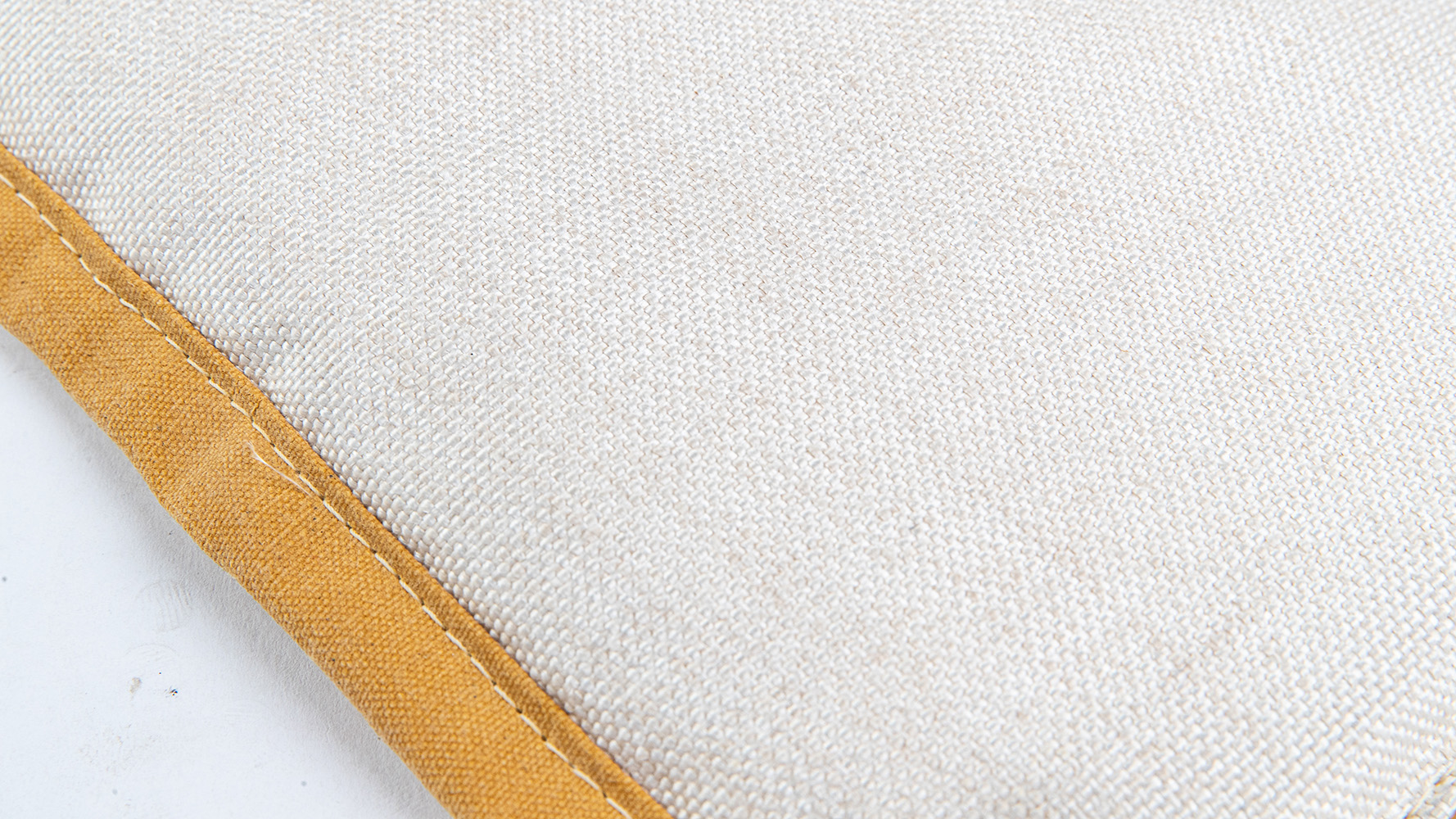

Blankets are made with a canvas exterior and lined with 1” fiberglass insulation and glass cloth for superior heat protection. The elastic strap makes them easy to secure, and an S-hook ensures a tight fit to your pipes.
Features
Prevent weld cracks by keeping welded pipes from cooling too quickly

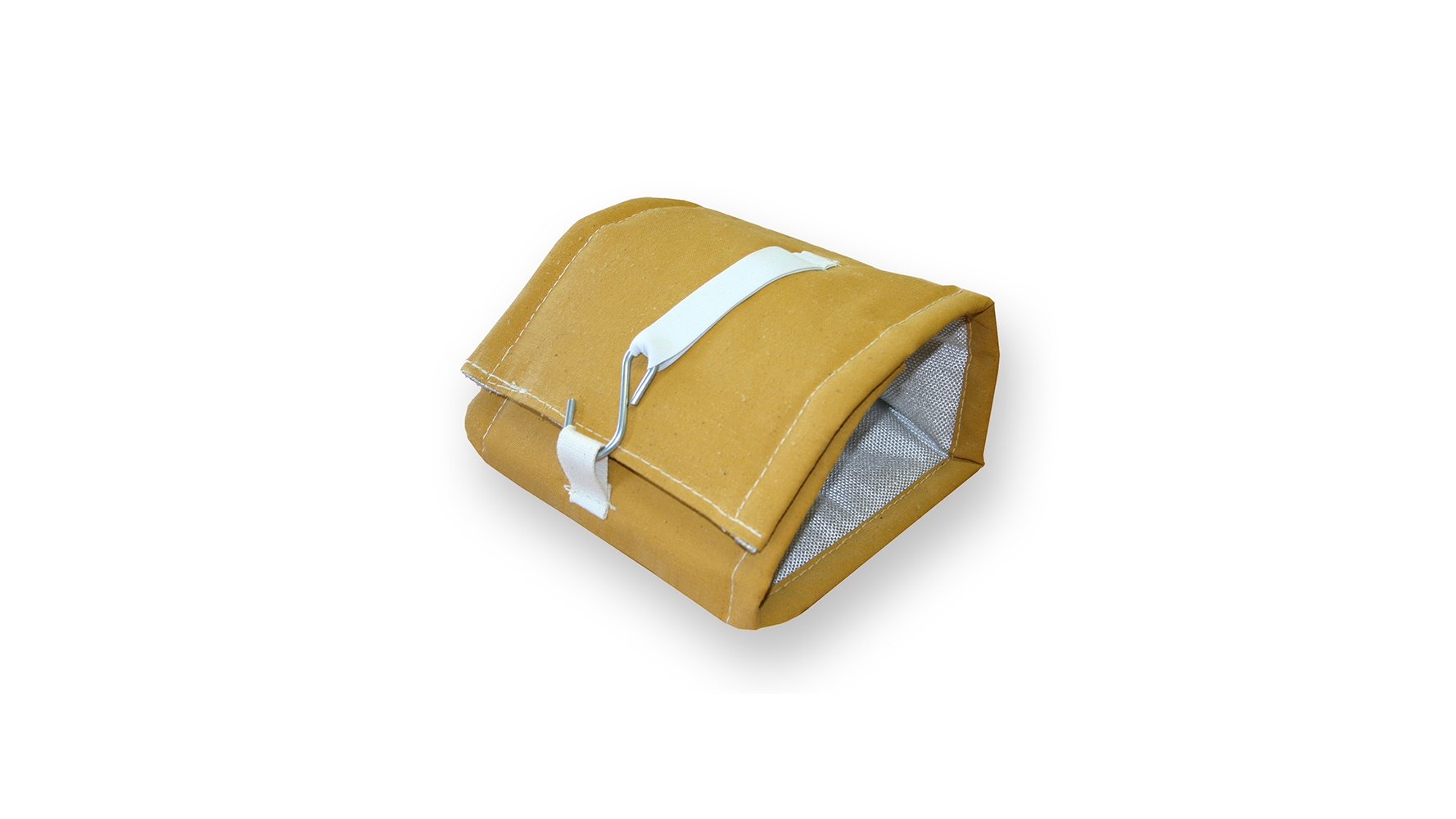

Easy to secure with elastic strap and S-hook for a tight fit to pipes
It can be customized to specific project requirements
Fabricated with a canvas exterior, lined with 1” fiberglass insulation and glass cloth for superior heat protection
Glass-cloth temperature rating at 1,000-1,500°F (538-815°C)
Available in two formats: adjustable and standard sizes. Both formats come in 9” and 12” widths with varying lengths
FAQ
Frequently Asked Questions
BENEFITS
GEAR POINTS
Minimize cracks during the welding of steel pipes by preventing them from cooling too quickly.
Protect
Prevent cold-crack caused by rapid or uneven cooling of welds, and protect your teams from burning themselves.
Withstand
Fabricated with glass-cloth and fiberglass insulation to withstand fresh weld temperatures.
Resist
Glass-cloth material handles high temperatures of fresh welds while fiberglass insulation allows for more even cooling.
Fit
In-stock, ready-to-order products and custom configurations are available.
Perform
Easy to secure with elastic strap and S-hook for a tight fit to pipes, minimizing the need to grind and repair cracked welds.
SKU TABLE
PIPELINE COOLING BLANKETS
| ITEM NO. | SIZE | MAX. PIPE DIAMETER |
| 386899 | 9" x 30" Adjustable | 3" - 6" Diameter |
| 386900 | 9" x 50" Adjustable | 8" - 12" Diameter |
| 387178 | 12" x 30" Adjustable | 3" - 6" Diameter |
| 387179 | 12" x 50" Adjustable | 8" - 12" Diameter |
| 387162 | 9" x 21" | 3" Diameter |
| 387163 | 9" x 24" | 4" Diameter |
| 387164 | 9" x 30" | 6" Diameter |
| 387165 | 9" x 37" | 8" Diameter |
| 387166 | 9" x 44" | 10" Diameter |
| 387167 | 9" x 50" | 12" Diameter |
| 387168 | 9" x 58" | 14" Diameter |
| 387169 | 9" x 64" | 16" Diameter |
| 387170 | 9" x 71" | 18" Diameter |
| 387171 | 9" x 77" | 20" Diameter |
| 387172 | 9" x 83" | 22" Diameter |
| 387173 | 9" x 89" | 24" Diameter |
| 387174 | 9" x 108" | 30" Diameter |
| 387175 | 9" x 127" | 36" Diameter |
| 387176 | 9" x 146" | 42" Diameter |
| 387177 | 9" x 165" | 48" Diameter |
